无人驾驶算法之单目稠密重建

概述

  • 1.定位
  • 2.导航:地图中哪些地方不可通过,而哪些地方是可以通过的
  • 3.避障:仅有特征点,我们无法判断某个特征点是否为障碍物,所以我们将需要稠密地图
  • 4.重建:利用 SLAM 获得周围环境的重建效果
  • 5.交互:主要指机器人与地图之间的互动
    #百人创作先锋团# 无人驾驶、地图构建算法之单目稠密重建-汽车开发者社区

单目稠密重建

1 立体视觉

相机,很久以来被认为是只有角度的传感器(Bearing only)。单个图像中的像素,只能提供物体与相机成像平面的角度以及物体采集到的亮度,而无法提供物体的距离(Range)。而在稠密重建,我们需要知道每一个像素点(或大部分像素点)的距离,那么大致上有以下几种解决方案:

  1. 使用单目相机,利用移动相机之后进行三角化,测量像素的距离。
  2. 使用双目相机,利用左右目的视差计算像素的距离(多目原理相同)。
  3. 使用 RGB-D 相机直接获得像素距离。
  • 三角测量:特征匹配 -> 深度估计
  • 极线搜索和块匹配:确定第一张图的某个像素出现在其他图的位置
  • 深度滤波技术:随着测量的增加,从一个非常不确定的量,逐渐收敛到一个稳定值

2 极线搜索与块匹配

#百人创作先锋团# 无人驾驶、地图构建算法之单目稠密重建-汽车开发者社区

  • 在特征点方法中,我们通过特征匹配找到了 p2 的位置。然而现在我们没有描述子,所以只能在极线上搜索和 p1 长的比较相似的点。再具体地说,我们可能沿着第二张图像中的极线的某一头,走到另一头,逐个儿比较每个像素与 p1 的相似程度。
  • 一种直观的想法是:既然单个像素的亮度没有区分性,那是否可以比较像素块呢?我们在 p1 周围取一个大小为 w × w 的小块,然后在极线上也取很多同样大小的小块进行比较,就可以一定程度上提高区分性。这就是所谓的块匹配。
  • 块匹配的相似度评价方法:
    #百人创作先锋团# 无人驾驶、地图构建算法之单目稠密重建-汽车开发者社区
    #百人创作先锋团# 无人驾驶、地图构建算法之单目稠密重建-汽车开发者社区
  • 在搜索距离较长的情况下,我们通常会得到一个非凸函数:这个分布存在着许多峰值,然而真实的对应点必定只有一个。在这种情况下,我们会倾向于使用概率分布来描述深度值,而非用某个单一个的数值来描述深度。于是,我们的问题就转到了,在不断对不同图像进行极线搜索时,我们估计的深度分布将发生怎样的变化——这就是所谓的深度滤波器

3 高斯分布的深度滤波器

假设下图为匹配得分沿距离的分布:
#百人创作先锋团# 无人驾驶、地图构建算法之单目稠密重建-汽车开发者社区
#百人创作先锋团# 无人驾驶、地图构建算法之单目稠密重建-汽车开发者社区

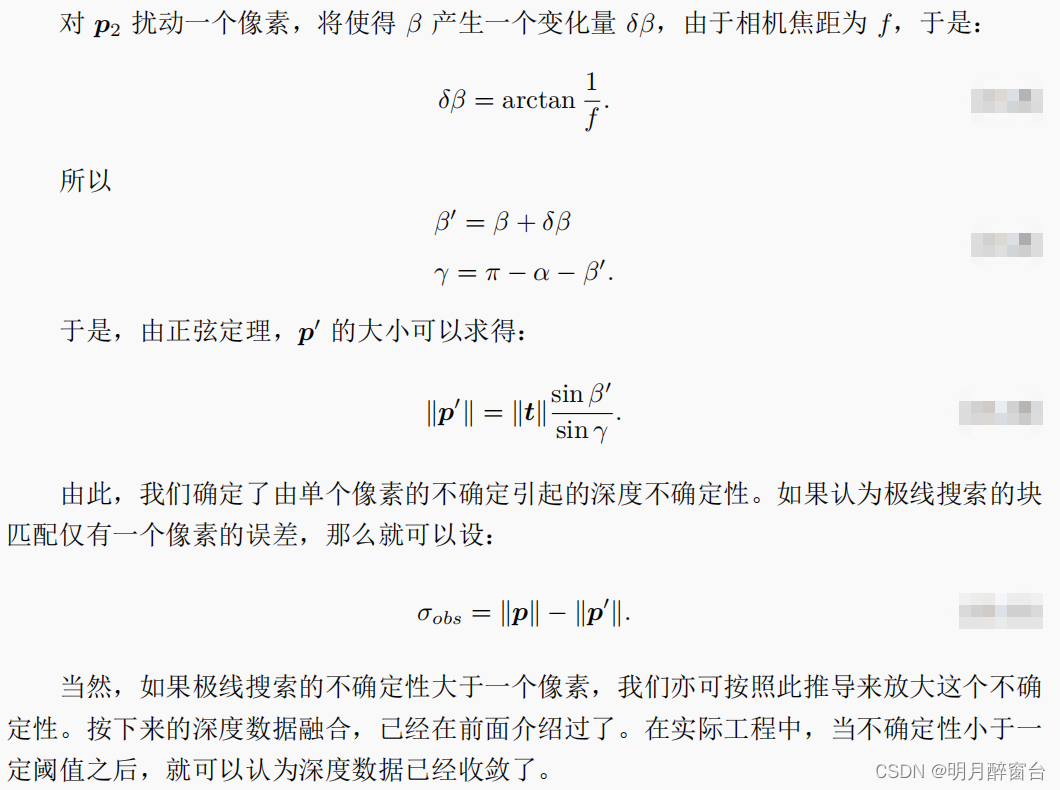

----->>> 如何计算新数据的均值与标准差?
#百人创作先锋团# 无人驾驶、地图构建算法之单目稠密重建-汽车开发者社区
#百人创作先锋团# 无人驾驶、地图构建算法之单目稠密重建-汽车开发者社区
#百人创作先锋团# 无人驾驶、地图构建算法之单目稠密重建-汽车开发者社区
综上所述,我们给出了估计稠密深度的一个完整的过程:

    1. 假设所有像素的深度满足某个初始的高斯分布;
    1. 当新数据产生时,通过极线搜索和块匹配确定投影点位置;
    1. 根据几何关系计算三角化后的深度以及不确定性;
    1. 将当前观测融合进上一次的估计中。若收敛则停止计算,否则返回 2。

4 算法实现

#include<iostream>
#include <fstream>
#include <sophus/se3.h>
#include <opencv2/core/core.hpp>
#include <opencv2/highgui/highgui.hpp>
#include <opencv2/imgproc/imgproc.hpp>

using namespace Eigen;
using namespace std;
using Sophus::SE3;
using namespace cv;

//    parameters
//    边缘宽度
const int boarder = 20;
//    宽度
const int width = 640;
//    高度
const int height = 480;
//    相机内参
const double fx = 481.2f;
const double fy = -480.0f;
const double cx = 319.5f;
const double cy = 239.5f;
//    NCC取的窗口半宽度
const int ncc_window_size = 2;
//    NCC窗口面积
const int ncc_area = (2 * ncc_window_size + 1) * (2 * ncc_window_size + 1);
//    收敛判定:最小方差
const double min_cov = 0.1;
//    发散判定:最大方差
const double max_cov = 10;

//从REMODE数据集读取数据
bool readDatasetFiles(const string &path, vector<string> &color_image_files, vector<SE3> &poses) {
    ifstream fin(path + "/first_200_frames_traj_over_table_input_sequence.txt");
    if (!fin) {
        return false;
    }
    while (!fin.eof()) {
//        数据格式:图像文件名 tx,ty,tz,qx,qy,qz,qw,是TWC而不是TCW
        string image;
        fin >> image;
        double data[7];
        for (double &d:data) {
            fin >> d;
        }
        color_image_files.push_back(path + string("/images/") + image);
        poses.emplace_back(Quaterniond(data[6], data[3], data[4], data[5]), Vector3d(data[0], data[1], data[2]));
        if (!fin.good())
            break;
    }
    return true;
}

void plotDepth(const Mat &depth) {
    imshow("depth", depth * 0.4);
    waitKey(1);
}

//像素到相机坐标系
inline Vector3d px2cam(const Vector2d px) {
    return Vector3d((px(0, 0) - cx) / fx, (px(1, 0) - cy) / fy, 1);
}

//相机到像素坐标系
inline Vector2d cam2px(const Vector3d p_cam) {
    return Vector2d(p_cam(0, 0) * fx / p_cam(2, 0) + cx, p_cam(1, 0) * fy / p_cam(2, 0) + cy);
}

//显示极线
void showEpipolarLine(const Mat &ref, const Mat &curr, const Vector2d &px_ref, const Vector2d &px_min_curr,
                      const Vector2d &px_max_curr) {

    Mat ref_show, curr_show;
    cvtColor(ref, ref_show, CV_GRAY2BGR);
    cvtColor(curr, curr_show, CV_GRAY2BGR);

    circle(ref_show, cv::Point2f(px_ref(0, 0), px_ref(1, 0)), 5, cv::Scalar(0, 255, 0), 2);
    circle(curr_show, cv::Point2f(px_min_curr(0, 0), px_min_curr(1, 0)), 5, cv::Scalar(0, 255, 0), 2);
    circle(curr_show, cv::Point2f(px_max_curr(0, 0), px_max_curr(1, 0)), 5, cv::Scalar(0, 255, 0), 2);
    line(curr_show, Point2f(px_min_curr(0, 0), px_min_curr(1, 0)), Point2f(px_max_curr(0, 0), px_max_curr(1, 0)),
         Scalar(0, 255, 0), 1);

    imshow("ref", ref_show);
    imshow("curr", curr_show);
    waitKey(1);
}

//显示极线匹配
void showEpipolarMatch(const Mat &ref, const Mat &curr, const Vector2d &px_ref, const Vector2d &px_curr) {
    Mat ref_show, curr_show;
    cvtColor(ref, ref_show, CV_GRAY2BGR);
    cvtColor(curr, curr_show, CV_GRAY2BGR);

    circle(ref_show, cv::Point2f(px_ref(0, 0), px_ref(1, 0)), 5, cv::Scalar(0, 0, 250), 2);
    circle(curr_show, cv::Point2f(px_curr(0, 0), px_curr(1, 0)), 5, cv::Scalar(0, 0, 250), 2);

    imshow("ref", ref_show);
    imshow("curr", curr_show);
    waitKey(1);
}


//检测一个点是否在图像边框内
inline bool inside(const Vector2d &pt) {
    return pt(0, 0) >= boarder && pt(1, 0) >= boarder && pt(0, 0) + boarder < width && pt(1, 0) + boarder <= height;
}

// 双线性灰度插值
inline double getBilinearInterpolatedValue(const Mat &img, const Vector2d &pt) {
    uchar *d = &img.data[int(pt(1, 0)) * img.step + int(pt(0, 0))];
    double xx = pt(0, 0) - floor(pt(0, 0));
    double yy = pt(1, 0) - floor(pt(1, 0));
    stringstream stream(img.step + 1);
    int int_temp;
    stream >> int_temp;
    return ((1 - xx) * (1 - yy) * double(d[0]) +
            xx * (1 - yy) * double(d[1]) +
            (1 - xx) * yy * double(d[img.step]) +
            xx * yy * double(d[int_temp])) / 255.0;
}


double NCC(const Mat &ref, const Mat &curr, const Vector2d &pt_ref, const Vector2d &pt_curr) {
//    零均值-归一化互相关
//    先算均值
    double mean_ref = 0, mean_curr = 0;
//    参考帧和当前帧的均值
    vector<double> values_ref, values_curr;
    for (int x = -ncc_window_size; x < ncc_window_size; ++x) {
        for (int y = -ncc_window_size; y < ncc_window_size; ++y) {
            double value_ref = double(ref.ptr<uchar>(int(y + pt_ref(1, 0)))[int(x + pt_ref(0, 0))]) / 255.0;
            mean_ref += value_ref;

            double value_curr = getBilinearInterpolatedValue(curr, pt_curr + Vector2d(x, y));
            mean_curr += value_curr;
            values_ref.push_back(value_ref);
            values_curr.push_back(value_curr);
        }
    }
    mean_ref /= ncc_area;
    mean_curr /= ncc_area;
//    计算zero mean NCC
    double numerator = 0, demoniator1 = 0, demoniator2 = 0;
    for (int i = 0; i < values_ref.size(); ++i) {
        double n = (values_ref[i] - mean_ref) * (values_curr[i] - mean_curr);
        numerator += n;
        demoniator1 += (values_ref[i] - mean_ref) * (values_ref[i] - mean_ref);
        demoniator1 += (values_curr[i] - mean_curr) * (values_curr[i] - mean_curr);
    }
//    防止分母出现零
    return numerator / sqrt(demoniator1 * demoniator2 + 1e-10);
}

//极线搜索
bool epipolarSearch(const Mat &ref, const Mat &curr, const SE3 &T_C_R, const Vector2d &pt_ref,
                    const double &depth_mu, const double &depth_cov, Vector2d &pt_curr) {
    Vector3d f_ref = px2cam(pt_ref);
    f_ref.normalize();
//    参考帧的P向量
    Vector3d P_ref = depth_mu * f_ref;
//    按深度均值投影的像素
    Vector2d px_mean_curr = cam2px(T_C_R * P_ref);
    double d_min = depth_mu - 3 * depth_cov, d_max = depth_mu + 3 * depth_cov;
    if (d_min < 0.1)
        d_min = 0.1;
//    按最小深度投影的像素
    Vector2d px_min_curr = cam2px(T_C_R * (d_min * f_ref));
//    按最大深度投影的像素
    Vector2d px_max_curr = cam2px(T_C_R * (d_max * f_ref));
//    极线,线段形式
    Vector2d epipolar_line = px_max_curr - px_min_curr;
//    极线方向
    Vector2d epipolar_direction = epipolar_line;
    epipolar_direction.normalize();
//    极线线段的半长度
    double half_length = 0.5 * epipolar_line.norm();
    if (half_length > 100)
        half_length = 100;

//    显示极线
    showEpipolarLine(ref, curr, pt_ref, px_min_curr, px_max_curr);

//    在极线上搜索,以深度均值点为中心,左右各取半长度
    double best_ncc = -1.0;
    Vector2d best_px_curr;
    for (double l = -half_length; l <= half_length; l += 0.7) {
//        待匹配点
        Vector2d px_curr = px_mean_curr + l * epipolar_direction;
        if (!inside(px_curr))
            continue;
//        计算待匹配点与参考帧的NCC
        double ncc = NCC(ref, curr, pt_ref, px_curr);
        if (ncc > best_ncc) {
            best_ncc = ncc;
            best_px_curr = px_curr;
        }
    }
//    只相信NCC很高的匹配
    if (best_ncc < 0.85f)
        return false;
    pt_curr = best_px_curr;
    return true;
}

bool updateDepthFilter(const Vector2d &pt_ref, const Vector2d &pt_curr, const SE3 &T_C_R, Mat &depth, Mat &depth_cov) {
    // 用三角化计算深度
    SE3 T_R_C = T_C_R.inverse();
    Vector3d f_ref = px2cam(pt_ref);
    f_ref.normalize();
    Vector3d f_curr = px2cam(pt_curr);
    f_curr.normalize();

    // 方程
    // d_ref * f_ref = d_cur * ( R_RC * f_cur ) + t_RC
    // => [ f_ref^T f_ref, -f_ref^T f_cur ] [d_ref] = [f_ref^T t]
    //    [ f_cur^T f_ref, -f_cur^T f_cur ] [d_cur] = [f_cur^T t]
    // 二阶方程用克莱默法则求解并解之
    Vector3d f2 = T_R_C.rotation_matrix() * f_curr;
    Vector2d b = Vector2d(T_R_C.translation().dot(f_ref), T_R_C.translation().dot(f2));
    double A[4];
    A[0] = f_ref.dot(f_ref);
    A[2] = f_ref.dot(f2);
    A[1] = -A[2];
    A[3] = -f2.dot(f2);
    double d = A[0] * A[3] - A[1] * A[2];
    Vector2d lambdavec =
            Vector2d(A[3] * b(0, 0) - A[1] * b(1, 0),
                     -A[2] * b(0, 0) + A[0] * b(1, 0)) / d;
    Vector3d xm = lambdavec(0, 0) * f_ref;
    Vector3d xn = T_R_C.translation() + lambdavec(1, 0) * f2;
    Vector3d d_esti = (xm + xn) / 2.0;  // 三角化算得的深度向量
    double depth_estimation = d_esti.norm();   // 深度值

    // 计算不确定性(以一个像素为误差)
    Vector3d p = depth_estimation * f_ref;
    Vector3d a = p - T_R_C.translation();
    double t_norm = T_R_C.translation().norm();
    double a_norm = a.norm();
    double alpha = acos(f_ref.dot(T_R_C.translation()) / t_norm);
    double beta = acos(-a.dot(T_R_C.translation()) / (a_norm * t_norm));
    double beta_prime = beta + atan(1 / fx);
    double gamma = M_PI - alpha - beta_prime;
    double p_prime = t_norm * sin(beta_prime) / sin(gamma);
    double d_cov = p_prime - depth_estimation;
    double d_cov2 = d_cov * d_cov;

    // 高斯融合
    double mu = depth.ptr<double>(int(pt_ref(1, 0)))[int(pt_ref(0, 0))];
    double sigma2 = depth_cov.ptr<double>(int(pt_ref(1, 0)))[int(pt_ref(0, 0))];

    double mu_fuse = (d_cov2 * mu + sigma2 * depth_estimation) / (sigma2 + d_cov2);
    double sigma_fuse2 = (sigma2 * d_cov2) / (sigma2 + d_cov2);

    depth.ptr<double>(int(pt_ref(1, 0)))[int(pt_ref(0, 0))] = mu_fuse;
    depth_cov.ptr<double>(int(pt_ref(1, 0)))[int(pt_ref(0, 0))] = sigma_fuse2;

    return true;
}

//根据新的图像更新深度估计
void update(const Mat &ref, const Mat &curr, const SE3 &T_C_R, Mat &depth, Mat &depth_cov) {
#pragma omp parallel for
    for (int x = boarder; x < width - boarder; ++x) {
#pragma omp parallel for
        for (int y = boarder; y < height - boarder; ++y) {
//            遍历每个像素
//            深度已收敛或发散
            if (depth_cov.ptr<double>(y)[x] < min_cov || depth_cov.ptr<double>(y)[x] > max_cov)
                continue;
//            在极线上搜索(x,y)的匹配
            Vector2d pt_curr;
            bool ret = epipolarSearch(ref, curr, T_C_R, Vector2d(x, y), depth.ptr<double>(y)[x],
                                      sqrt(depth_cov.ptr<double>(y)[x]), pt_curr);
//            匹配失败
            if (!ret)
                continue;
//            显示匹配
            showEpipolarMatch(ref, curr, Vector2d(x, y), pt_curr);
//            匹配成功,更新深度图
            updateDepthFilter(Vector2d(x, y), pt_curr, T_C_R, depth, depth_cov);
        }
    }
}

/**
 * 本程序演示了单目稠密重建
 * 使用极线搜索+NCC匹配
 * @param argc
 * @param argv
 * @return
 */
int main(int argc, char **argv) {
    if (argc != 2) {
        cout << "Usage: dense_monocular path_to_test_dataset" << endl;
        return -1;
    }

    // 从数据集读取数据
    vector<string> color_image_files;
    vector<SE3> poses_TWC;
    bool ret = readDatasetFiles(argv[1], color_image_files, poses_TWC);
    if (!ret) {
        cout << "reading image files failed!" << endl;
        return -1;
    }
    cout << "read total " << color_image_files.size() << " files." << endl;

    // 第一张图
    Mat ref = imread(color_image_files[0], 0);                // gray-scale image
    SE3 pose_ref_TWC = poses_TWC[0];
    double init_depth = 3.0;    // 深度初始值
    double init_cov2 = 3.0;    // 方差初始值
    Mat depth(height, width, CV_64F, init_depth);             // 深度图
    Mat depth_cov(height, width, CV_64F, init_cov2);          // 深度图方差

    for (int index = 1; index < color_image_files.size(); index++) {
        cout << "*** loop " << index << " ***" << endl;
        Mat curr = imread(color_image_files[index], 0);
        if (curr.data == nullptr) continue;
        SE3 pose_curr_TWC = poses_TWC[index];
        SE3 pose_T_C_R = pose_curr_TWC.inverse() * pose_ref_TWC; // 坐标转换关系: T_C_W * T_W_R = T_C_R
        update(ref, curr, pose_T_C_R, depth, depth_cov);
        plotDepth(depth);
        imshow("image", curr);
        waitKey(1);
    }

    cout << "estimation returns, saving depth map ." << endl;
    imwrite("depth.png", depth);
    cout << "done." << endl;
    return 0;
}

#百人创作先锋团# 无人驾驶、地图构建算法之单目稠密重建-汽车开发者社区

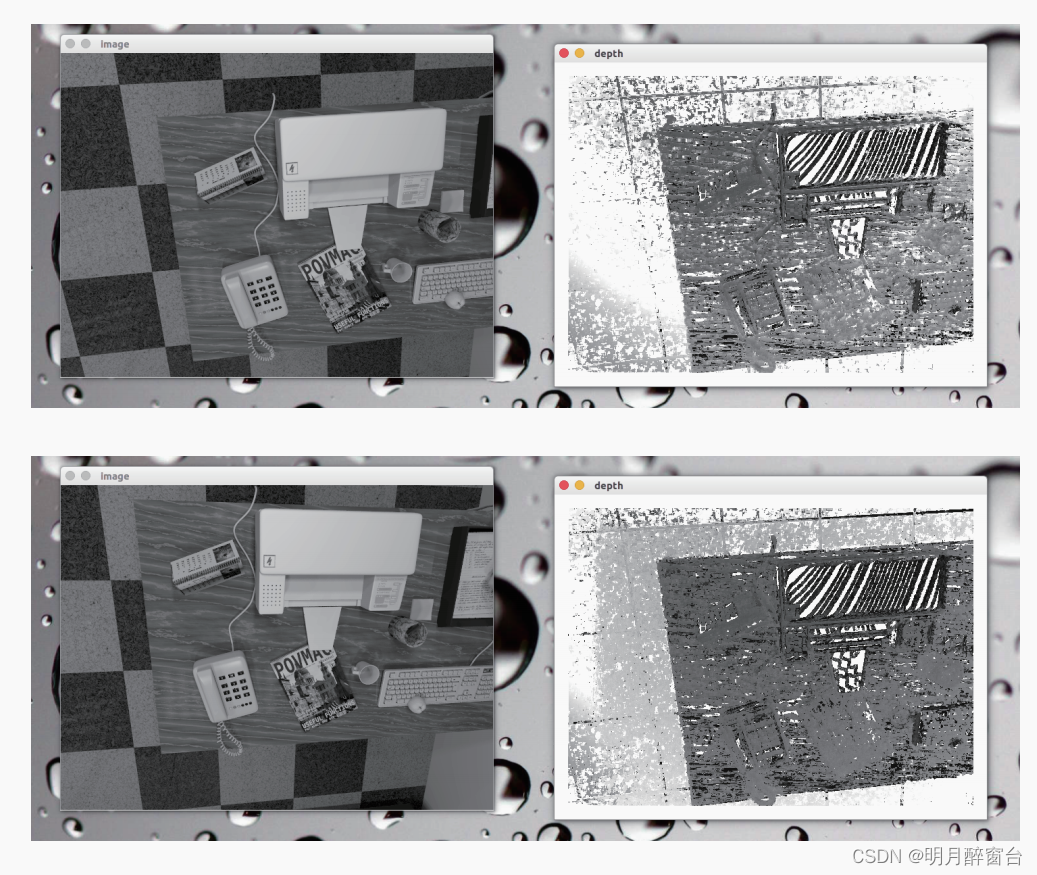

演示程序运行时截图。两图分别是迭代 10 次和 30 次的结果。
#百人创作先锋团# 无人驾驶、地图构建算法之单目稠密重建-汽车开发者社区

5 小结

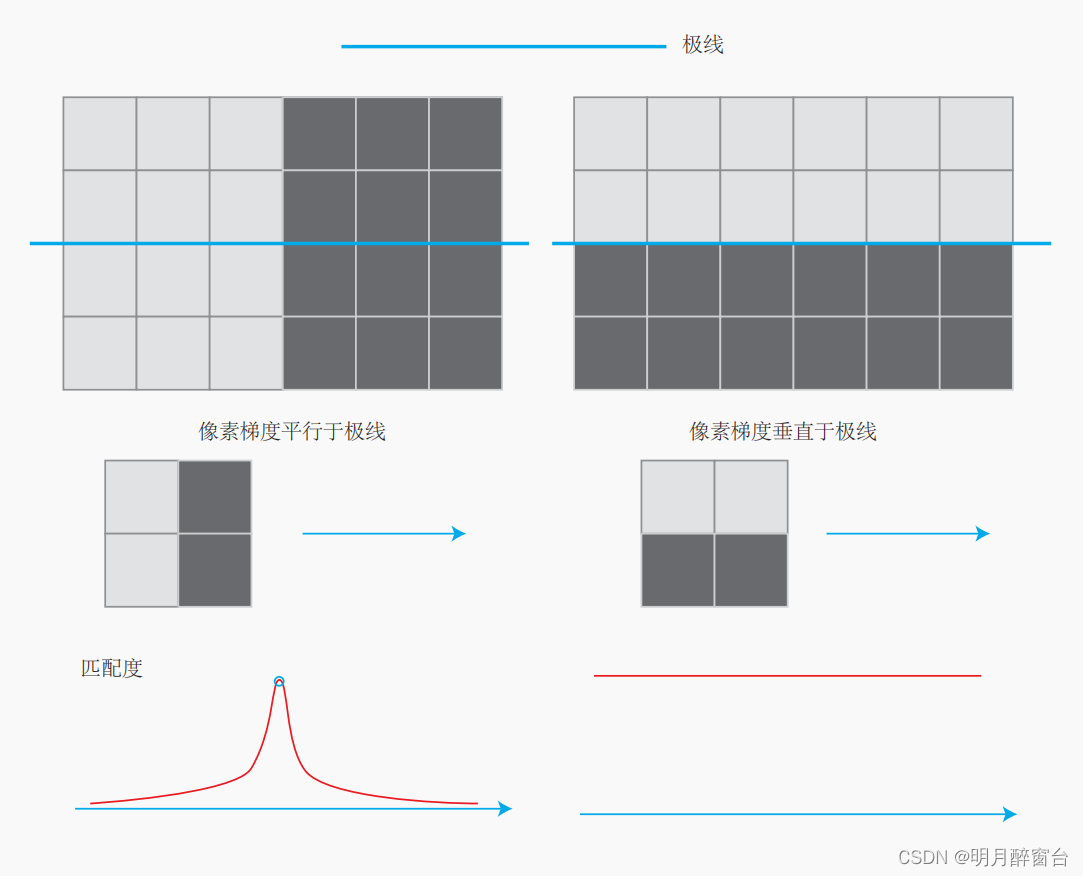

  • 1.像素梯度与极线的关系:
    有明显梯度的小块将具有良好的区分度,不易引起误匹配。对于梯度不明显的像素,由于在块匹配时没有区分性,所以我们将难以有效地估计其深度。反之,像素梯度比较明显的地方,我们得到的深度信息也相对准确,例如桌面上的杂志、电话等具有明显纹理的物体。因此,演示程序反映了立体视觉中一个非常常见的问题:对物体纹理的依赖性。该问题在双目视觉中也极其常见,体现了立体视觉的重建质量,十分依赖于环境纹理。
    #百人创作先锋团# 无人驾驶、地图构建算法之单目稠密重建-汽车开发者社区
  • 2.效率问题
    多线程和GPU并行计算

©著作权归作者所有,如需转载,请注明出处,否则将追究法律责任
收藏
回复
举报
回复
相关推荐
